Accessories and equipment for brick production
Brick forming presses

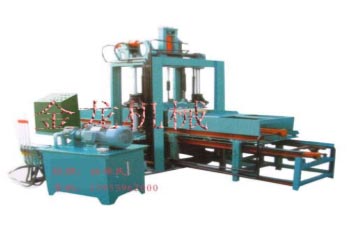

| LU-QTJ 8 – AS 15 Hydraulic press |
 |
Weight ˜ 12 t
Size L x W x H 9m x 2.3m x 2.6m ,
Productivity (8 hrs):
Block with internal cavities – 20 000 pcs
Standard block – 8000 pcs
The assembly includes as follows:
Main unit, electric control panel, hydraulic station, chain device, brick output device, forklift, plate lifting machine, mixing machine molds, tools. |
UP>>

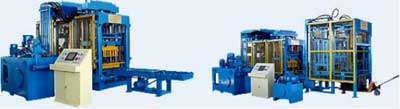

| QTJ4-15Hydraulic press |
 |
Shift (8 hours) - 5 persons
Production area – 4000 m2 |
UP>>
| LU-QTJ4-15 Hydraulic press |
 |
Weight 7 tons
Size L x W x D: 5m x 1.6m x 2.65m,
Productivity (8 hours) holed bricks/standard bricks – 20 000/40000 pcs
The assembly includes as follows:
Main unit, electric control panel, hydraulic station, chain device, brick output device, forklift, plate lifting machine, mixing machine molds, tool
|
UP>>
QTJ20
Shift (8hrs)-5 persons
Production area – 1500 meters.
1. In the territory of PR China the above equipment is delivered during 7 days, factory’s guarantee is 3 years, free maintenance during warranty period.
Weigth 3t
Size L x W x H 7m x 1.5m x 2.2m
Productivity/8 hrs 20000 pcs
Main unit, electric control panel, hydraulic station, brick output system pusher, mixer, molds, instruments
| QTJ4-30 |
 |
Semi-automatic chemically bonded brick production equipment
Shift (8hrs) -5 persons.
Production area – 1500 m2
Weight - 2.9 t Size L x W x H 2600 x 1800 х 2650 Productivity/8 hours – holed brick/standard brick - 3500 /20000
T350 Mixer
Weight 0.75t
Size 1500/1500/1100
Productivity 18 m3/hr
SD8-6 loader
Weight 0.26 t
Size 2000/800/800
Conveyor belt
Weight 0.75t
Size 6600/800/600
Type – holed brick/standard brick |
| QTJ4-30D |
 |
Shift (8hrs) -4 persons .
Production area – 2000m2 (without compressor)
Weight 3.5tons,
Size L x W x H 2600 х 1800 х 2650
Productivity 8t/hours –holed brick/standard brick - 1000/ 5000pcs
SD8-6 Conveyor belt
Size L x W x H 6600/800/600,
Weight - 0.75tons,
Loader - 2 pcs,
Weight - 0.26
Size L x W x H 2000/800/800 |
UP>>
HDP hyperpressing machines
HDP- is double action automated press equipment for production of brick and curbs
main features of new method of production of high-strength hollow brick are as follows:
Cement is substituted by lime. No racks are required
Cost saving: high strength blocks can be stacked and loaded automatically
Instead of cement(300 RMB /ton), cheap lime is added (135RMB/ton)
Ash content in bricks is raised from 30% to 70%
Replaceable molds help to make products of size 240 х 115 х 55 мм
Steam pressure application allows to cost 30% of production area
In case of cement steam is not compulsory
Specufications: HDP-800
Rated pressure 800 tons
Molds/one time- 24 pcs
Production of standard brick/hour 5400 pcs.,
Production of holed brick/hours 2700pcs
Air taps 3 times,
Total power 98kW ,
Special features- compactness and high quality
Specifications: HDP-600
Rated pressure 600 tons
Molds/one time- 20 pcs
Production of standard brick/hour 4500 pcs.,
Production of holed brick/hours 2250 pcs ,
Air taps 3 times,
Total power 90kW,
Special features- compactness and high quality
Specifications: HDP-400
rated pressure 400 tons
Molds/one time 20 pcs.,
Productivity-standard brick 3100 pcs.hr,
Production of holed brick/hour -1550 pcs
Air taps 3 times,
Total power 50kW,
Special features- compactness and high quality
Specifications: HDP-300
Rated pressure 300 tons
Productivity-standard brick 2700 pcs/hr.,
Production of holed brick/hour 1350 pcs/hr
Air taps - 3 times,
Total power 46kW,
Special features- compactness and high quality
Hydraulic reinforcement systems are designed and made in Italy.
High quality bricks are made of /shredded inert materials by semi-dried pressing and by no kiln production method, respectively.
Clay kilned bricks of grades 300, 450, 500, 750 are produced. There are various types of presses
Presses are supplied both separately and completed by auxiliary machines
 |
 |
| Press mounting |
Disk-shaped mixer |
 |
 |
| Main drum |
Block extruder |
 |
 |
| Hydraulic reinforcement stations |
Biaxial shedding mixer |
UP>>
YMZ1000-1. Universal hydraulic press for bricks
YMZ350-1. Universal hydraulic press for bricks
 |
Multifunctional hydraulic press for brick production.
It is manufactured by German and US standards.
PLC monitor Siemens electronics.
Robot operated machine.
Touch sensitive board.
Three beams and 4 columns design.
Effective system of operation parameters analysis. Reliable design |
| Model |
YMZ1000-1 |
YMZ350-1 |
| Size of production |
240 mm x 115 mm x 53 mm, 240 mm x 115 mm x 90 mm (hollow), 390 mm x 190 mm x 190 mm (hollow), colored block stones of all types |
| Productivity/hr |
32 pcs. (standard brick) |
12 pcs. (standard bricks) |
| Productivity |
8500-10000 bricks/hr |
3000-4000 bricks/hr |
| Operating pressure |
1000 t |
350 t |
| Working stroke of the press matrix |
500mm |
500mm |
| Driving power |
75KW (Main engine) |
35KW (Main engine) |
| Weight |
50 t |
30 t |
| Size |
5000 x 5000 x 4600 m |
3800 x 2500 x 3200 mm |
UP>>
Concrete mixer JS500
 |
Model |
JS500 |
| Volume (output material) |
500 L |
| Volume (input material) |
800 L |
| Productivity |
=25 m2/h |
| Max size of filler (gravel, ballast of broken stone) |
80/60 |
|
Blades
|
Speed |
35 rpm |
| Quantity |
2 x 7 |
| Electric motor |
Model |
Y180M-4 |
| Power |
18.5kw |
| Lifting machine |
Model |
YEZ1325-4-B5 |
| Power |
5.5kw |
| Water pump |
Model |
500WB20-BA |
| Power |
750W |
| Speed of feeding material lifting |
18 m/min |
| Outer size (L x W x H) |
Movement |
3050 x 2300 x 2680mm |
| Operation |
4461 x 3050 x 5225mm |
| Weigth |
4000kg |
UP>>
| Kneading machine Model JB1650 x 500 |
 |
Specifications of the kneading machine :
Vessel’s capacity - 400L
Loading by weight - 400kg
Vessels' capacity- 1850х350
Rolls’ size - 760х230
Rolls' weight - 400х2
Mixing shovels - 2 pc
Mixing time - 3-5 min / 1 time
Productivity - 5-8 tons / hr
Main shaft rotations - 25 rpm
Engine power - Y160M-4 11 KW
Weight - 3898kg |
UP>>
| Vertical shaft mixer |
 |
Storage capacitor 2m3
Engine power Y100L2-4-3KW
WPO135I reducer, reduction: 18:1
Belt drive B1740, 3 belts
Weight 800kg
Size L x W x H 1676 х 1676 х 2000 mm
|
UP>>
| Crusher S118D |
 |
Amount of output material 500 L/ time
Mixing disk diameter - 1800m
Mixing time 3-5 min
Main axis rotation speed 26 rpm
Power 11kw
Shaft’s weight 300 kg
Batch time 20-25/seconds
Size L x W x H 1912 x 2010 x 1622(mm)
|
UP>>
| JP-1000K Concrete hydraulic wafer machine |
 |
Max pressure: 1000KN(100T)
Drums diameter: 240мм
Power: 10.5Kw
Weight: 2000kg
Productivity: 300*300*150 (2 working positions)
350*350*150 (4 working positions)
Size L x W x H : 730*730*1800mm
Main production:
Within the limit of 700*300*150mm (2 operation positions) and 350*350*150 (4 operation positions) brick bridges of various types.
|
UP>>
| JP-2500K Concrete hydraulic wafer press |
 |
Main specifications:
Max. pressure: 2500KN (250t)
Drum's diameter: 340mm
Power: 18 kW
Weight of main unit: 4500kg
Productivity: 800*400*200 (2 working positions) 450*450*200 (4 working positions)
Size L x W x H : 850*850*2100mm
|
UP>>
| JP-3000KS Concrete hydraulic wafer machine |
 |
Max pressure: 3000KN (300T)
Drum's diameter: 260*2mm
Power: 18Kw
Weight: 8000kg
Productivity: 1000*500*200mm
Size L x W x H : 1600*800*2100mm |
UP>>
| CAT6-8 Multiperforated manual wafer hydraulic machine |
 |
Whole bricks in mold – 10 pcs
Pressure 10 MPa
Vibration frequency 2800-3500
One Shift 240*115*53 10000 pcs 12 pcs /mold
One shift 240*115* 90 5000-5800 90 5000-5800 pcs 6 pcs /mold
Molding time 30 seconds
Pressure plate size 800*260*1
Size L x W x H 2500*1500*2400
Transmission mode – hydraulic vibration
|
UP>>
| JS500 Single-axial mixer |
 |
T35 mixer
Weight 0.75t ,
Size L x W x H 1500/1500/1100,
Productivity 6 m3/hr
|
UP>>
| Diesel autoloader |
 |
|
UP>>
| Rails |
 |
Rails provide transportation of finished products from moulding machines to pressure chamber, and from pressure chamber to finished product storage area.
24 rails are used the track is - 550 mm |
UP>>
| Trolleys |
 |
Set of trolleys (60 pcs) for 24 000 000 production line.
Width - 120cm, Length - 250 cm, Height - 10 cm.
Set of trolleys (20pcs) 10 000 000 production line –
WIdth - 120см, Length - 250 см, Height - 10 cm.
|
UP>>
| LU-JSD165 pressure chamber - dryer |
 |
It includes pressure chamber, safety valve, hydraulic valve, control system, rails inside pressure chamber
Diameter of pressure chamber can vary from 180 to 230 cm, length – from 18 to 36 m
Standard design length -25 m.
Drying cycle – 8 hours.
Size 25m x 1.8m x 2m
Weight 18 tН
Productivity/8h 30000 pcs
Excessive pressure- 1, 5 atm
It doesn’t require constant presence of personnel
personnel
For 24 000 000 it is necessary to have 3 chambers.
For 10 000 000 production line - 1 chamber
|
UP>>
Thermal unit
Power - 60 kW
It can use gas, mazut, coal. The assembly depends on order
RCF800 attritor
Weight - 3 000 kg
Productivity - 40tons/shift
Power - 55 kW
Height - 1,8m
Diameter - 0,8м
Is is destined for attrition of clay and inert material to 0.5 mm
| |
 |
It is used for production of bricks It kneads initial raw materials
Capacity 2 m3
Y100L2 Engine power - 4-3кW
WPO135 reducer i,
Reduction: 18:1,
Belt drive B1740 Belt drive, 3 belts,
Weight 0.8 tons,
Size 1676 х 1676 х 2000 |
UP>>
| Inert materials bunker (triple bunker) |
 |
 |
LU - PLD800-1600Б bunker
Weight 4tons
Size (L*W*H) 9*2.2*3.5m,
Productivity /8h 60m3 |
LU - PLD400-800 bunker Weight ˜3tons
Size )L*W*H) 8*1.8*3.5m
Productivity /8h ˜37m3
|
LU - PLD200-800 Bunker
Weight ˜3tons
Size (L*W*H) 8*1.5*3.5m Productivity /8h ˜ 20 m3 |
UP>>
| Cement bunker |
 |
LU - JS300 cement bunker
Weight 1,6 tons,
Size 11.4m×1.5m
Capacity - 10tons
LU - JS400 cement bunker
Weight 2.0 tons
Size L х W х H 11.4m×1.5m,
Capacity 15tons
LU - JS500 Cement bunker
Weigth 2.6tons
Size 14m×2.2m
Capacity - 30 tons |
UP>>
| Siemens remote control system |
 |
It consists of 3 control panels and one control unit
Each control panel is used for one section |
UP>>
| Handling machines |
 |
 |
One modification
It is used in all HDP type machines for hyperpressing |
| Kiln |
 |
Hot processing section for bricks
Kiln.
For kilned brick production a fire resistant bricks, rails, burner for chosen fuel type (gas, mazut, coal) control system, racks are supplied
Personnel for mounting and construction operations are sent if required. |
