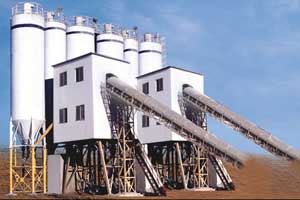

HZS-60 concrete production equipment



1.Complete line:
Max productivity – 60 m3 hr
Outer size (length*width*height) – 30200*9030*17200
Standard height of raw materials outlet device - 3800 mm
Operation cycle: 60 seconds.
Power – 115 kW
2.Mixer: Model: JS 100
Quantity: 1
Amount of loaded raw materials : 1600 L
Amount of unloaded raw materials : 1000 L
Filler's diameter. (crushed stone, grovel): 60/80 mm
Axis speed : 27.8 RPM
Electric machine power : 2 * 18.5 kW
3.Sand batching :
Hopper - 45 m3
Batching time : 60 seconds.
Belt conveyor :Band width – 800 mm
Band's speed – 1.25 m/sec.
Transportation/time – 155 m3/hr
Power – 5.5 kW
4.Batching system :
Batching of fillers : 2-4
Batching of sand(kg): 400-800 ±2%
Batching of stone (kg): 700-1400 ±2%
Cement (kg): 200-500 ±1%
Water (kg): 50-400 ±1%
Additional constituents (kg): 3-20 ±1%
5.Raw materials feeding system :
Feed belt conveyor : ТВ750 model
Band speed : 1.46 m/sec
Angle of slope: 450
Volume of transportation : 155 m3 hr
Power: 15 kW
Screw machine for cement : Model: LS180
Amount: 2
Speed of transportation : 2*32 tons/hr
Power: 11 kW
Screw machine for fule slag : Model LS180
Amount: 1
Speed of transportation : 32 tons/hr
Power: 11 kW
Water pump : : ISG80-30-30 Model
Head: 30 m
Flow volume : 30 m3 hr
Power: 7.5 kW
Pump for additional components : Model: 40 FS
Head: 20 m
Flow volume : 5.4 m3 hr
Power: 4 kW
6.Gas- water system :
Air compressor model : V1.0/10
rated pressure discharge : 1.0 mPA/1.0 m3/min.
Power: 7.5 kW
