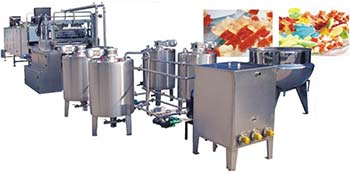

Fruit mixture jelly candy production equipment



Function: Jelly candy processing line is an advanced continous plant for  making various sizes jelly candies it is an ideal equipment which can produce out good quality products with the saving of

both the manpower and the space occupied..
This line  can produce: soft candy(two color and with filling inside) jelly candy, toffe candy.



This line consists of :

Sugar dissolving cooker (electric heating), 200 liters, 1 set
Gelatine melting tank, 200 L, 1 set
Syrup stortage tank, 1 set
Two colors high speed melting tank, 2 sets
Syrup transporting tank, 5 sets
Water heating tank, 1 set

Autmatic single row depositingg and cooling tunnel  (including control cabinet ) 1 set
Jelly candy molds  250 pcs
MAIN PARAMETERS:
Capacity 150KG/HR
Depositing Speed 55-65times/min
Working room Condition Temp.20-25℃ Humidity 55%
Total Power 32kw
Total Length 17m
Total Weight 3000kgs



Production process: Sugar dissolving,+ gelatin mixing-storage tank- mixer - depositing and molding, cooling - sugar coating - drying - packing
Компоненты

Sugar dissolving tank, 1 unit

Function: Dissolving sugar/glucose/water
Material : Jacket Tank, Outside: SUS304
Food contact surface:sus304
electric Parts: SIEMENS BRAND
Mixing motor: 0.37kw.
Dimension Dia850*1040mm
Power 6kw
Weight 120KGS
Working Temp 120℃
Working Pressure 0.15Mpa


200L GELATIN MELTING TANK(ELECTRIC HEATING)1SET
Function: Melting Gelatin or Pectin
Material : Jacket Tank, Outside: SUS304
Food contact surface:sus304.
electric Parts: SIEMENS BRAND
Mixing motor: 0.37kw.
Dimension Dia 850*1040mm
Power 6kw
Weight 120KGS
Working Temp 120℃
Working Pressure 0.15Mpa



.200L SYRUP STORAGE TANK 1SET
Function: storage the syrup and keep the temperature.
Material : Jacket Tank, Outside: SUS304
Food contact surface:sus304
electric Parts: SIEMENS BRAND
Jacket layer circulated with hot water.
Dimension Dia 850*1500mm
Power 0.38kw
Weight 100KGS
200L TWO COLORS HIGH SPEED MIXING TANK 2SETS

Function: storage the syrup and keep the temperature.
Material : Jacket Tank, Outside: SUS304
Food contact surface:sus304
electric Parts: SIEMENS BRAND
Jacket layer circulated with hot water.
Dimension Dia 850*1500mm
Power 0.38kw
Weight 100KGS



SYRUP TRANSPORTING PUMP 5SETS
Function: Pumping the syrup through tanks
Dimension 600*450*400mm
Power 1.5kw
Weight 40kgs
WATER HEATING TANK (ELECTRIC HEATING) 1SET
Function:
Supply hot water to the Storage tank and mixing tank jacket layer
for temperature reserve.
Material: Full Stainless steel 304
Dimension 600*600*1100
Power 9KW

Weight 100KGS


AUTOMATIC SINGLE ROW DEPOSITING &COOLING TUNNEL (INCLUDE SIEMENS PLC CONTROL ) 1SET
DEPOSITING UNIT WITH AUOMATIC REMOULDING
Function: Filling the syrup on the moulds, able to do
one color/two color/center filled candy etc.,
Material: Outside: SUS304
Food contact surface:sus304
Electronic Motor: ABB brand.
Air Cylinder: SMC, Japan
Other electric Parts: SIEMENS BRAND
Dimension 3800*1550*2100mm
Power 4.75kw
Weight 2600KGS
Compressed Air 0.2m³/hr 0.4-0.6Mpa



COOLING TUNNEL
Function: Cooling down the products.
Material: Machine Frame: Full SUS304, PU conveyor
belt. Panel/frame all insulated
Electronic Motor: ABB brand.
Other electric Parts: SIEMENS BRAND
Refrigerators: 3.5HP*2Sets ,Copeland,USA
Dimension 7200*750*2150mm
Power 5KW
Weight 1000KGS
Refrigerator 3HP*2Sets



JELLY CANDY MOULDS 500PCS
Material: Aluminum, coating with Teflon
(Size and Shape ,buyer provides)
Dimension 302*75mm
Qty 250pcs
(will provide 20extra as



spare ) To avoid adhesion, the mold can be covered with starched, mill nuts or powder



Candy jelly packing
Productiivty  60-120 packings/min
Packing lenght 45-300width  M 30-240
Packing sleeve diameter :<¢400
Size (mm) 1420*720*1610
Power  2kw
Weigth  250 kg
The line doesn't include :Air compressor  – 1
Dehumidifier 1 set  – 1
Blower, 1 set
Main raw materials :White sugar, glucose, gelatin, flavor and color additives, fruit treakle, milled fruits
Consumption :water: 0.36т/d
Electricity: 220V,60Hz, 18kw
Steam : 0.2--0.6Mpa
Air compressor  0.6Mpa 0.8м3/мин.
Operation area: (д*ш)
Producton shop  20*10m=200м2
Raw materaisl  8*10m=80м2
Final products shop  10*10m=100м2
Drying room 3m×3m=9м2
Temperature  40~60℃
Transportation  – 1-20 ft and  1-40 ft containers
Starting up and adjustment : The Seller sends an engineer for installation, staff training and recipes providing. The Buyer provides both ends air tickets
Warranty – 1 year
